PVE移除自建lvm存储卷后，在wei ui存储列表中仍存在lvm卷组-废柴阿尤の博客

删除lvm卷组

root@pve:~# lvs -o lv_name,vg_name,devices
  LV                       VG  Devices
  data                     pve data_tdata(0)
  root                     pve /dev/nvme0n1p3(2048)
  snap_vm-110-disk-0_k8s   pve
  snap_vm-110-disk-0_luoji pve
  snap_vm-111-disk-0_k8s   pve
  snap_vm-111-disk-0_luoji pve
  snap_vm-112-disk-0_k8s   pve
  snap_vm-112-disk-0_luoji pve
  swap                     pve /dev/nvme0n1p3(0)
  vm-100-disk-0            pve
  vm-110-cloudinit         pve
  vm-110-disk-0            pve
  vm-111-cloudinit         pve
  vm-111-disk-0            pve
  vm-112-cloudinit         pve
  vm-112-disk-0            pve
root@pve:~# dmsetup ls
pve--sda1-vm--100--disk--0	(252:13)
pve-data	(252:5)
pve-data-tpool	(252:4)
pve-data_tdata	(252:3)
pve-data_tmeta	(252:2)
pve-root	(252:1)
pve-swap	(252:0)
pve-vm--100--disk--0	(252:6)
pve-vm--110--cloudinit	(252:7)
pve-vm--110--disk--0	(252:8)
pve-vm--111--cloudinit	(252:9)
pve-vm--111--disk--0	(252:10)
pve-vm--112--cloudinit	(252:11)
pve-vm--112--disk--0	(252:12)
root@pve:~# dmsetup remove /dev/mapper/
control                     pve-data_tmeta              pve--sda1-vm--100--disk--0  pve-vm--110--cloudinit      pve-vm--111--disk--0
pve-data                    pve-data-tpool              pve-swap                    pve-vm--110--disk--0        pve-vm--112--cloudinit
pve-data_tdata              pve-root                    pve-vm--100--disk--0        pve-vm--111--cloudinit      pve-vm--112--disk--0
root@pve:~# dmsetup remove /dev/mapper/pve--sda1-vm--100--disk--0
root@pve:~# fdisk -l /dev/mapper/pve-
/dev/mapper/pve-data                /dev/mapper/pve-data-tpool          /dev/mapper/pve-vm--100--disk--0    /dev/mapper/pve-vm--111--cloudinit  /dev/mapper/pve-vm--112--disk--0
/dev/mapper/pve-data_tdata          /dev/mapper/pve-root                /dev/mapper/pve-vm--110--cloudinit  /dev/mapper/pve-vm--111--disk--0
/dev/mapper/pve-data_tmeta          /dev/mapper/pve-swap                /dev/mapper/pve-vm--110--disk--0    /dev/mapper/pve-vm--112--cloudinit
root@pve:~#

在web ui页面查看

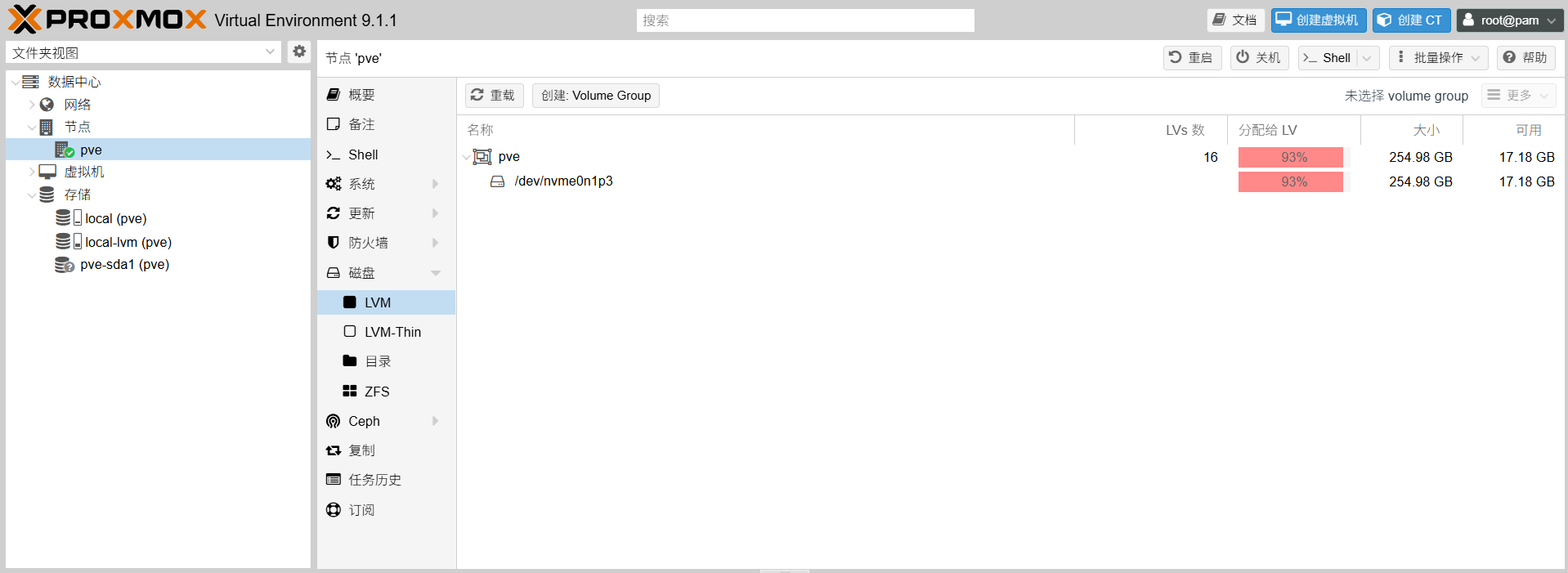

pve-sda1lvm卷组已删除

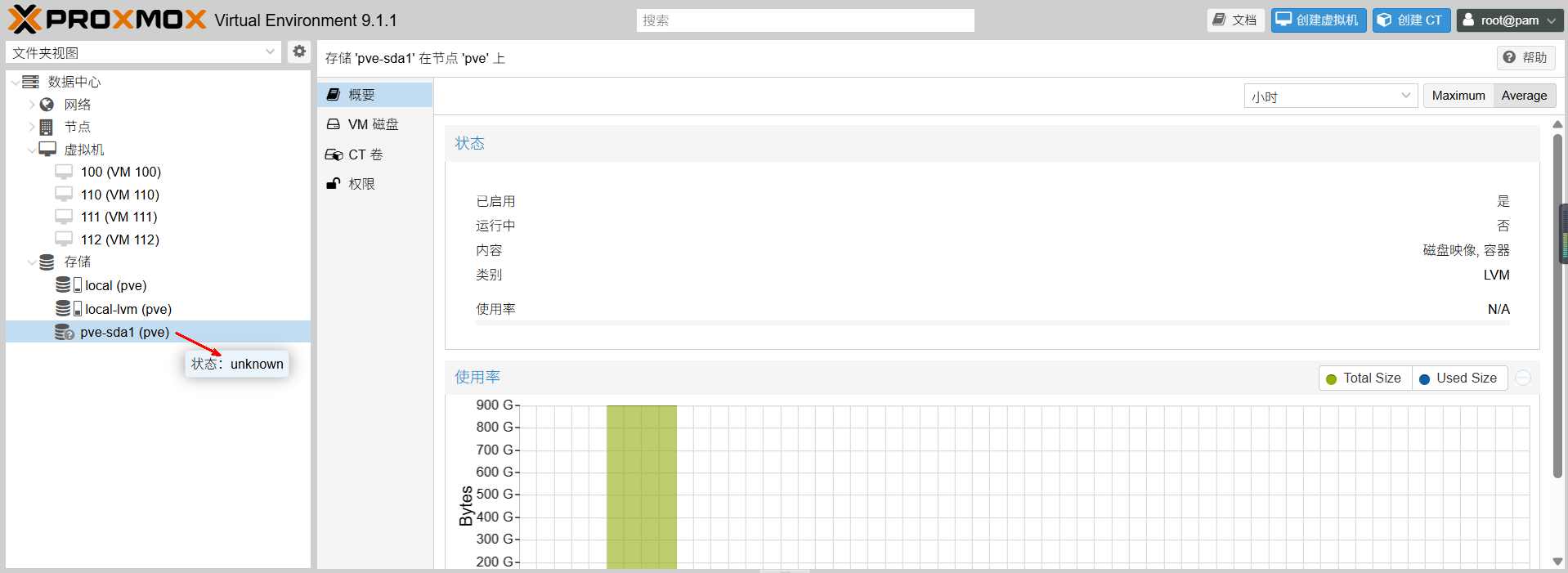

pve-sda1lvm卷组状态为unknown

解决

Web UI 的存储配置是通过 /etc/pve/storage.cfg 文件管理的，删除pve-sda1 相关条目

root@pve:~# cat /etc/pve/storage.cfg
dir: local
	path /var/lib/vz
	content backup,import,iso,vztmpl

lvmthin: local-lvm
	thinpool data
	vgname pve
	content images,rootdir

lvm: pve-sda1
	vgname pve-sda1
	content images,rootdir
	nodes pve
	shared 0

root@pve:~# cp /etc/pve/storage.cfg /etc/pve/storage.cfg.bak
root@pve:~# vim /etc/pve/storage.cfg
dir: local
        path /var/lib/vz
        content backup,import,iso,vztmpl

lvmthin: local-lvm
        thinpool data
        vgname pve
        content images,rootdir
~
"/etc/pve/storage.cfg" 8L, 134B written
root@pve:~# cat /etc/pve/storage.cfg
dir: local
	path /var/lib/vz
	content backup,import,iso,vztmpl

lvmthin: local-lvm
	thinpool data
	vgname pve
	content images,rootdir
root@pve:~#

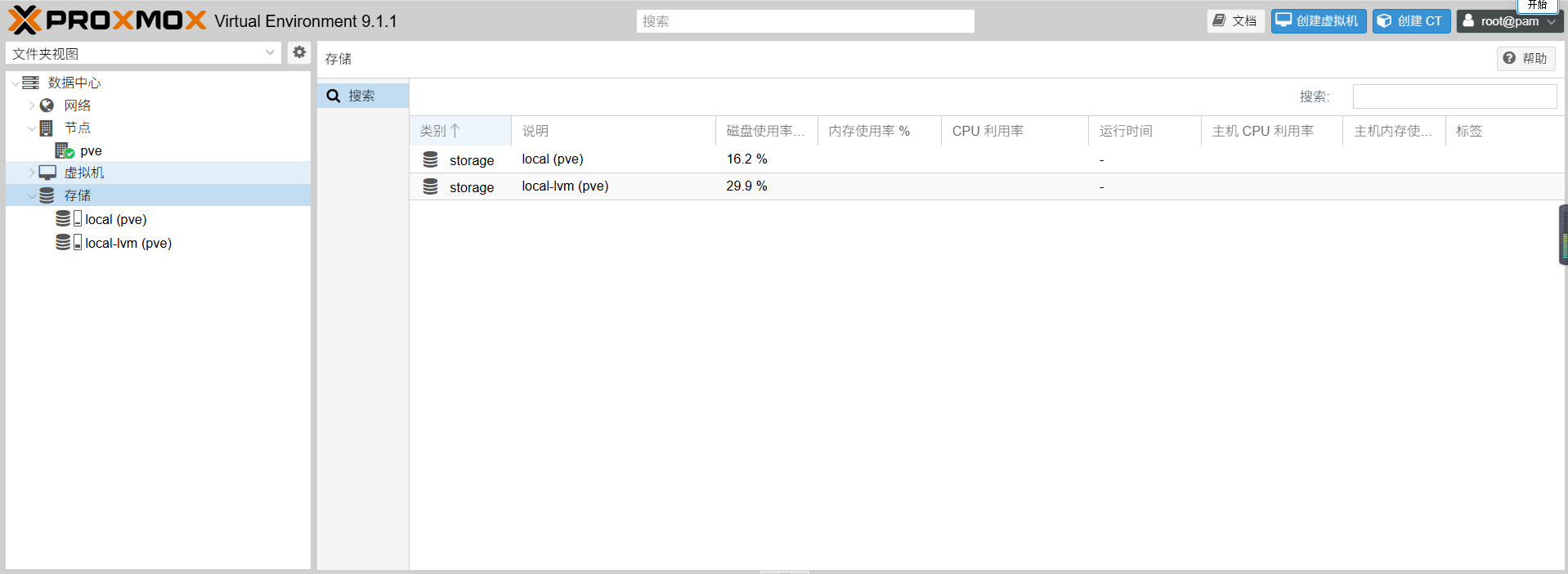

再次查看web ui pve-sda1 卷组已不存在
